FRONTLINE 18 FAN Mortar Rack Frame - Fits 1.91" HDPE DR11 Tubes - (FRAME ONLY) by American Mortar Company

BALANCED FAN COVERAGE. ENGINEERED SPACING. (TUBES NOT INCLUDED)

The FRONTLINE 18 FAN is a professional-grade 18-shot frame designed for pyrotechnicians who want wide, cinematic sky coverage without the bulk or weight of a full-box unit. Now available in a Frame-Only configuration, this is the ideal solution for shooters who have their own tubes and want to create layered, high-impact fan effects.

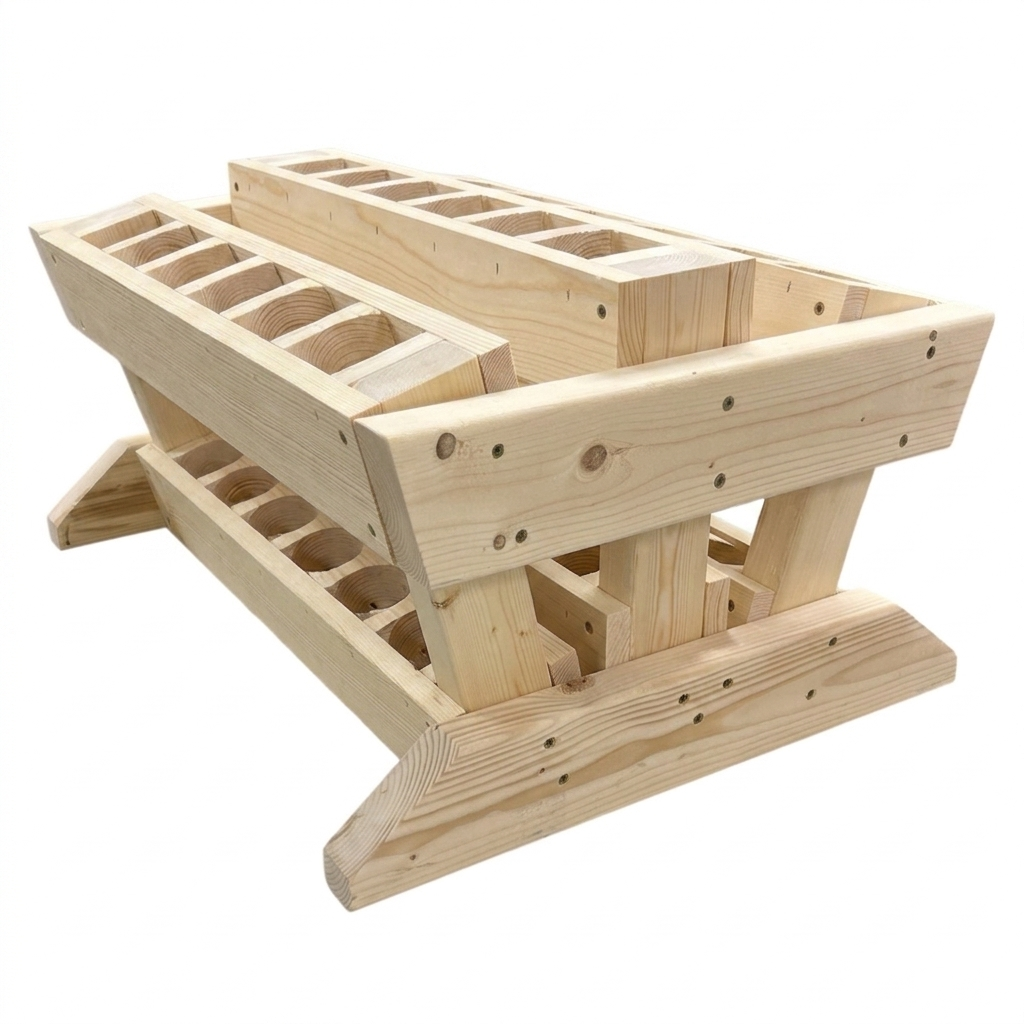

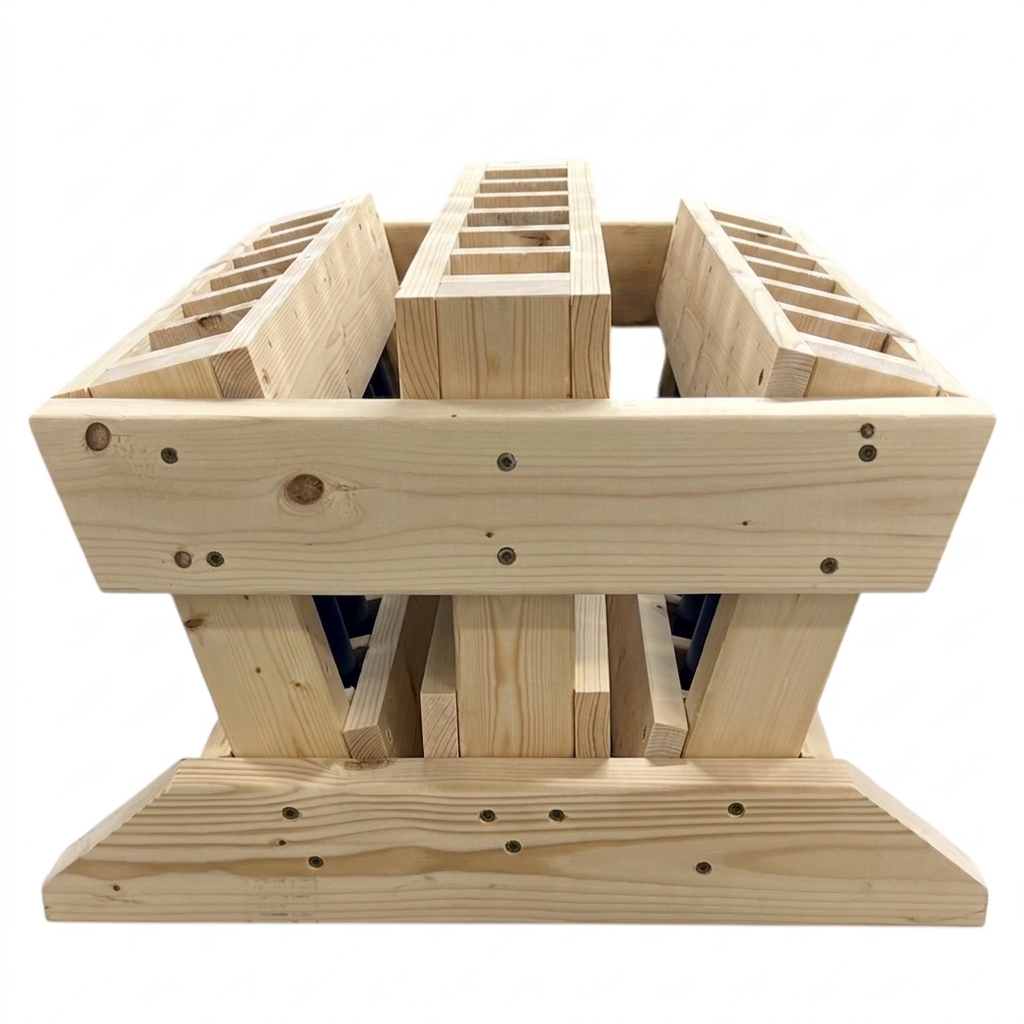

Built in a precision-angled 3x6 fan formation, this frame delivers clean, symmetrical spreads—perfect for mid-show volleys, sweeps, and professional-grade choreography.

🛡️ THE ENGINEERED ADVANTAGE

In an 18-shot fan, precision is everything. Like all our premium units, the FRONTLINE 18 FAN frame features Engineered Safety Spacing:

• Thermal Isolation: Strategic air gaps between every slot ensure maximum heat management during rapid-fire mid-show sequences.
• Structural Security: Reinforced wide-stance lumber construction is engineered to absorb the lateral recoil of angled launches, remaining rock-solid on the field.
• Precision Angling: Handcrafted to ensure consistent, repeatable trajectories for every shell fired.

🔵 FRAME SPECIFICATIONS & COMPATIBILITY

This commercial-grade frame is built to house professional-standard HDPE tubes.

• Tube Compatibility: Specifically engineered to fit 1.91" Inner Diameter / 2.375" Outer Diameter HDPE DR11 mortar tubes.
• Slot Depth: Designed for standard 12" length professional mortars.
• Capacity: 18 Slots (Fits 3 rows of 6).
• Formation: Precision Fan V-Shape.

💥 WHY THE FRONTLINE 18 FAN BELONGS IN YOUR SETUP

• Modular Versatility: The perfect mid-size unit. Pairs excellently with UNION 6 or FRONTLINE 18 Straight frames for complex, layered firing patterns.
• Cinematic Precision: The 3x6 fan layout creates a professional "side-to-side" sky-filling effect without the heavy footprint of larger racks.
• Engineered Spacing: Safety-first design provides superior thermal management and structural integrity in an angled configuration.
• Professional Build: Heavy-duty, kiln-dried lumber—built for both traditional fuse and electronic firing systems.

🎆 PERFECT FOR

• Pyrotechnicians who already own a supply of 1.91" HDPE tubes.
• Mid-size cinematic fan effects and left-to-right sweeps.
• Experienced hobbyists seeking professional-grade impact with a portable footprint.

⚠️ NOTE: This is a FRAME ONLY listing. No HDPE tubes are included with this purchase. This unit is designed for experienced pyrotechnicians who have their own professional-grade mortar tubes.

🔎 THE AMERICAN MORTAR LINEUP

• UNION 6 — Compact foundation rack.
• MINUTEMAN 12 FAN — Entry-level fan coverage.
• FRONTLINE 18 STRAIGHT — Balanced mid-size vertical firing.
• FRONTLINE 18 FAN — Balanced fan power and precision (this rack).
• THUNDER 24 — Full-box finale power.

🇺🇸 PROUDLY BUILT TO ORDER

Each FRONTLINE 18 FAN frame is handcrafted in our Saint John, Indiana shop. We ensure every slot is bored to precision and every frame is reinforced for maximum recoil absorption.

• Lead Time: Please allow 3–5 business days for assembly and quality inspection.
• Shipping: UPS Ground with automated tracking provided upon shipment.
• Safety & Liability: American Mortar Company LLC racks are tools for professional and hobbyist pyrotechnicians. By purchasing, you agree to follow all safety distances and local laws.
