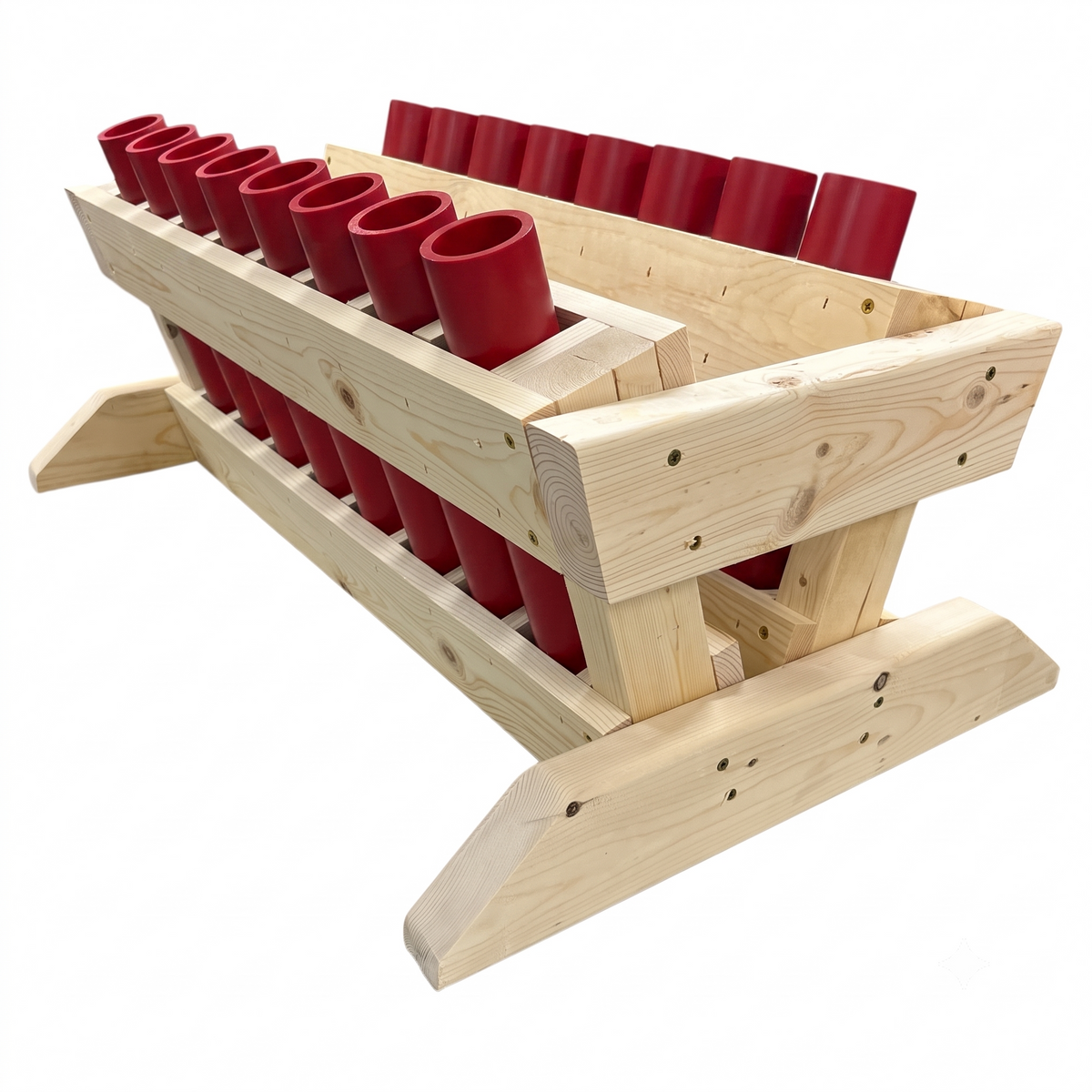

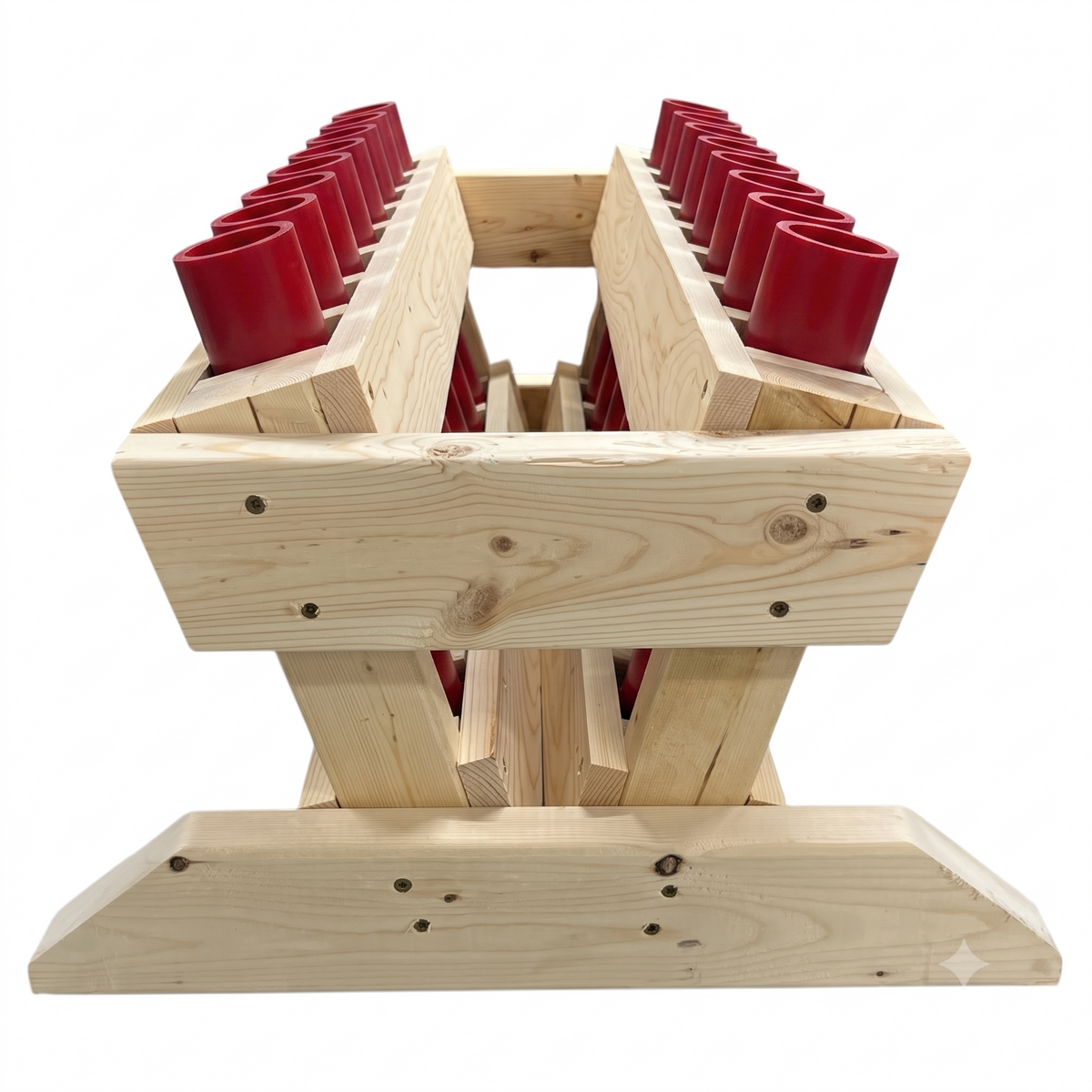

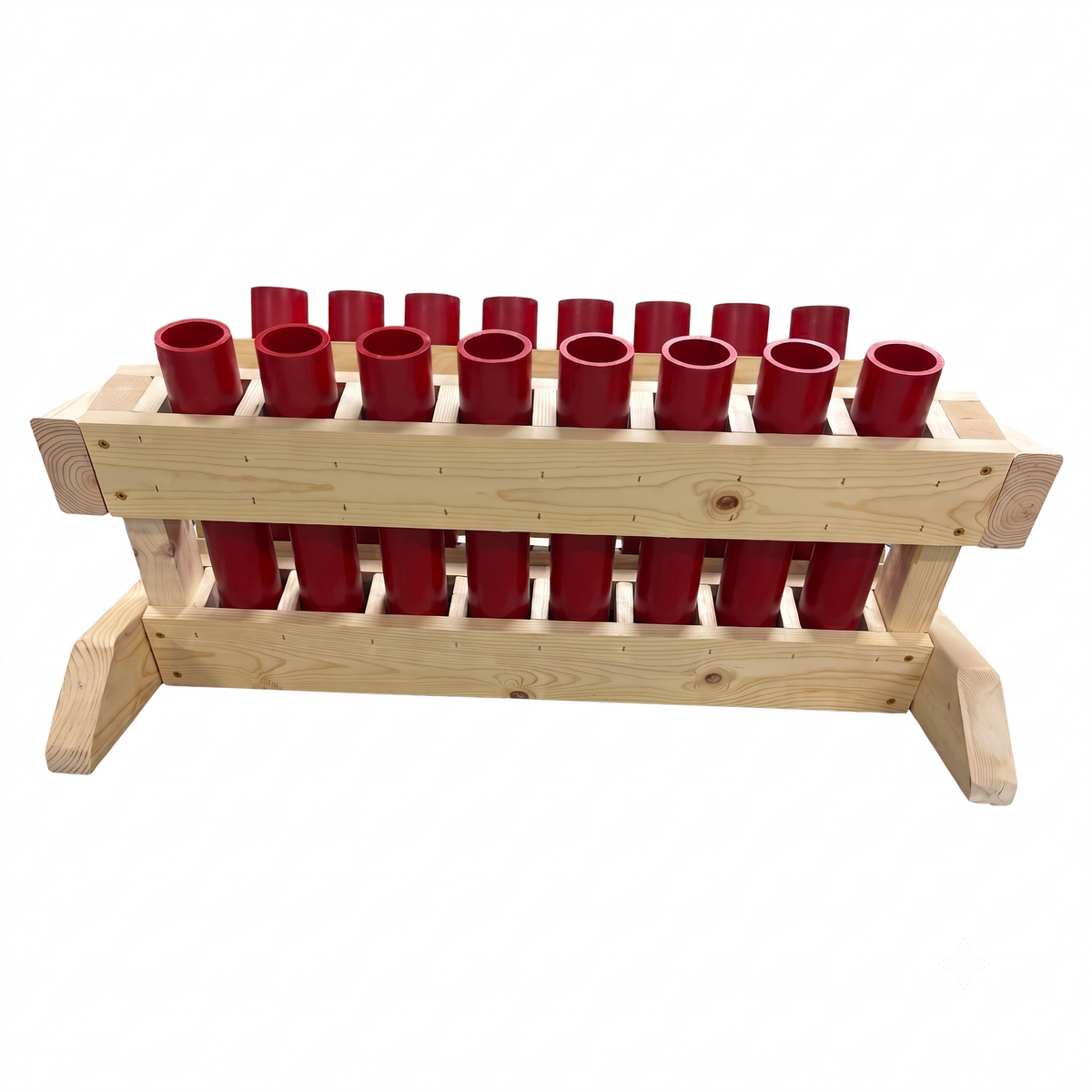

16-Shot Fan Mortar Rack - 1.91" HDPE DR11 Tubes - BROADSIDE 16 by American Mortar Company

WIDE-ANGLE COMMAND. ENGINEERED SPACING. PROFESSIONAL BUILD.

The BROADSIDE 16 FAN is engineered for pyrotechnicians who demand expanded horizontal spread and precise firing control in a professional fan rack. Built in a precision 2X8 angled formation, this rack delivers massive sky coverage and dynamic pacing, making it the ideal choice for mid-show accents, cross-field effects, and layered firing sequences.

Like all our premium units, the fan configuration is built with Engineered Safety Spacing—providing critical air gaps between every tube to ensure thermal isolation and structural security, even during rapid-fire angled sequences.

Expanded coverage, dependable, and built to last—this is where serious setups begin.

🛡️ THE GOLD STANDARD: WHY HDPE DR11?

In the world of pro pyrotechnics, the material of your mortar tube is the difference between a successful show and a dangerous failure.

• Shatter-Proof Safety: Unlike PVC, which can shrapnel into sharp plastic shards during a shell failure, our High-Density Polyethylene (HDPE) is designed to swell or tear under extreme pressure, significantly reducing the risk of flying debris.
• DR11 Heavy Wall: We use the DR11 specification, providing a thick, durable sidewall that handles the high-pressure lift charges of modern 1.91" canister shells with ease. HDPE tubes are weather-resistant, built for hundreds of reloads without becoming brittle.

🔵 COMMERCIAL-GRADE CONSTRUCTION

Each BROADSIDE 16 FAN rack includes 16 premium HDPE DR11 mortar tubes, built to professional specifications and trusted by experienced shooters.

• Inner Diameter: 1.91″ (Fits most consumer canister shells)
• Length: 12″ (Professional mortar standard)
• Bottoms: Factory-plugged and Quad-Stapled (4-point reinforcement) for maximum lift retention.
• Stability: Reinforced wide-stance lumber construction designed to remain rock-solid during angled launches.

📊 TECHNICAL SPECIFICATIONS

💥 WHY THE BROADSIDE 16 FAN BELONGS IN YOUR SETUP

✔️ Commanding Spread: Precision-angled 2X8 layout creates professional sweeping and cross-field effects.

✔️ Engineered Spacing: Strategic air gaps provide superior safety and heat management even in angled formations.

✔️ Professional Build: Heavy-duty lumber and HDPE—this rack doesn't just fire, it commands space.

✔️ Modular Versatility: Pairs perfectly with the Broadside 16 Straight for high-contrast, professional-grade displays.

🎇 PERFECT FOR

🎆 Sweeping fan effects and cross-field sequences

🎆 Mid-show visual accents and layered patterns

🎆 Professional e-firing setups and scripted cues

🎆 Pyrotechnicians building professional modular systems

Note: Designed for experienced pyrotechnicians. Always follow local laws and maintain safe distances.

🔎 CHOOSE THE RIGHT RACK FOR YOUR SHOW

UNION 6 — Compact foundation rack.

MINUTEMAN 12 FAN — Compact 12-shot fan effects.

BROADSIDE 16 STRAIGHT — Focused linear control.

BROADSIDE 16 FAN — Wide coverage and sweep effects (this rack).

GUARDIAN 20 — Expanded capacity with a stable footprint.

THUNDER 24 — Full-box power with a balanced footprint.

🇺🇸 BUILT TO HOLD FORMATION

The BROADSIDE 16 FAN represents disciplined construction, controlled firing, and professional reliability in a compact format.

No wasted space. No overlap. Just purpose-built performance.

Form up. Fire together. 💥

SHIPPING & PROUDLY BUILT TO ORDER

At American Mortar Company, we don't believe in "cookie-cutter" mass production. Each rack is handcrafted in our shop to ensure every HDPE tube is seated perfectly and every frame is reinforced for maximum recoil absorption.

• Lead Time: Please allow 3–5 business days for assembly and quality inspection before your order ships.
• Transit: We ship via UPS Ground to ensure your heavy hardware arrives safely.
• Tracking: You will receive an automated tracking number the moment your rack hits the truck.

Note: During peak pyro season (June & December), lead times may extend. Order early to ensure your line is ready for the big show.

⚠️ SAFETY & LIABILITY: American Mortar Company LLC racks are tools for professional and hobbyist pyrotechnicians. Use at your own risk. Always follow safety distances and local laws. By purchasing this product, you agree to hold American Mortar Company LLC harmless from any liability or damage resulting from its use.
