20-Shot Fan Mortar Rack - 1.91" HDPE DR11 Tubes - GUARDIAN 20 FAN by American Mortar Company

WIDE-ANGLE STABILITY. ENGINEERED SPACING. PROFESSIONAL BUILD.

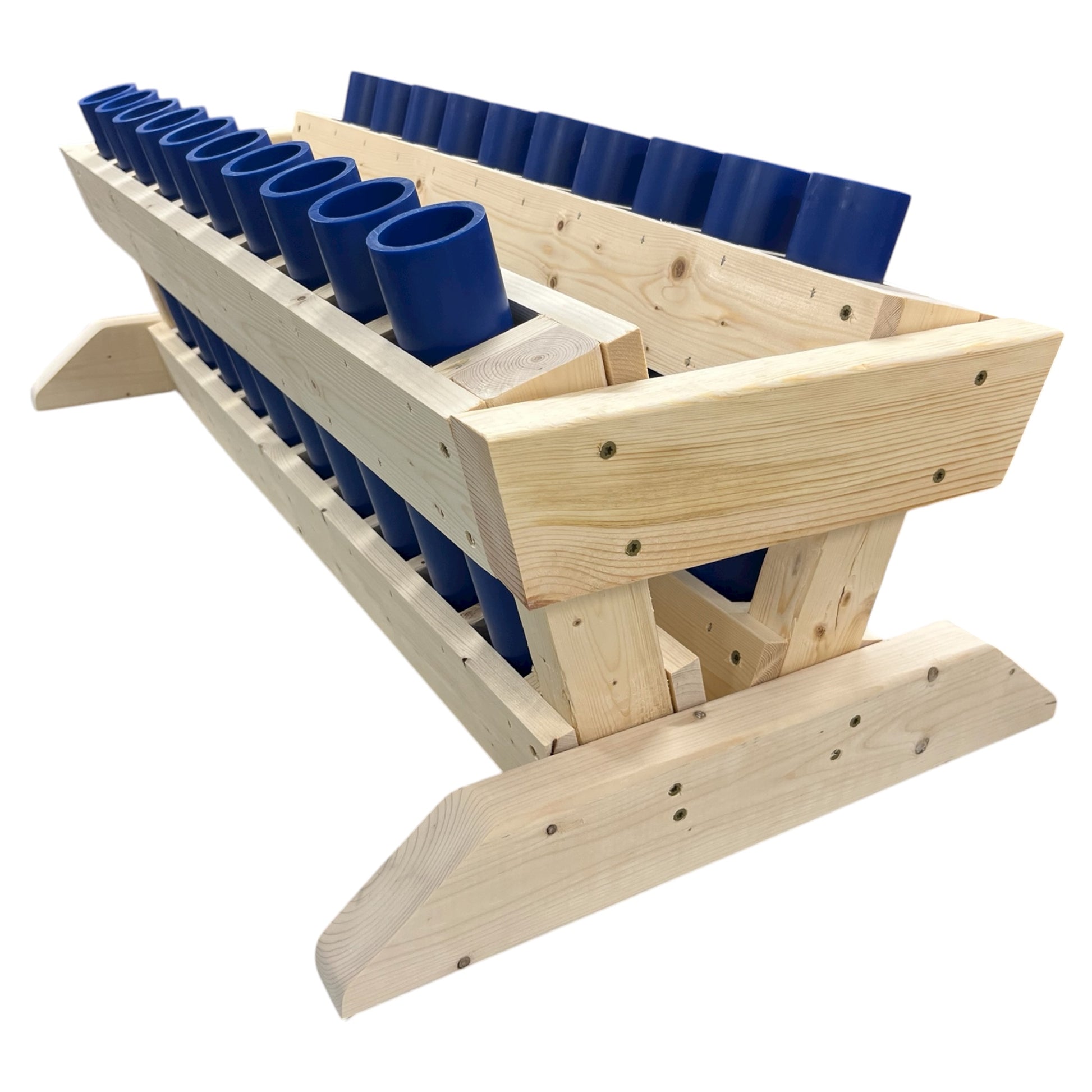

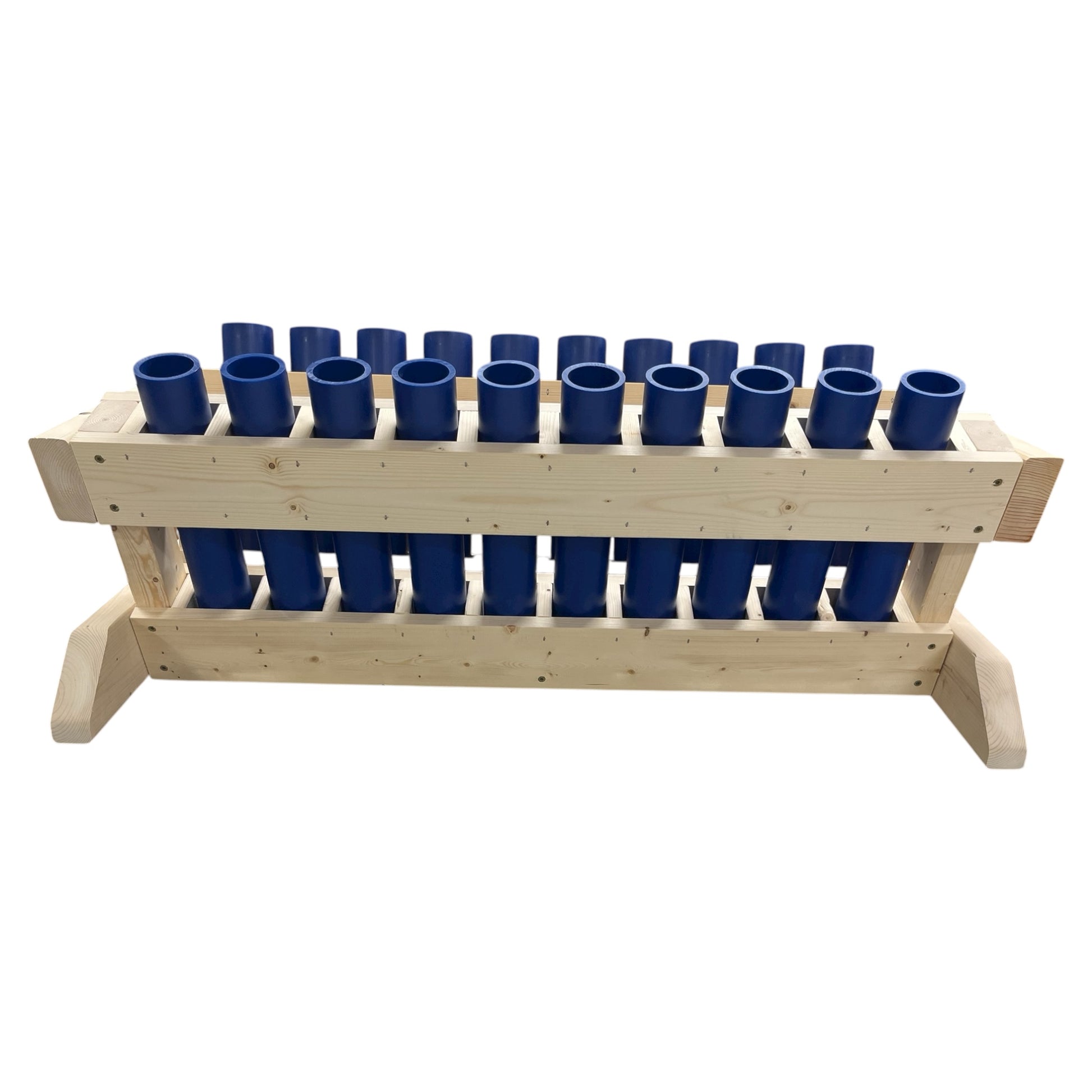

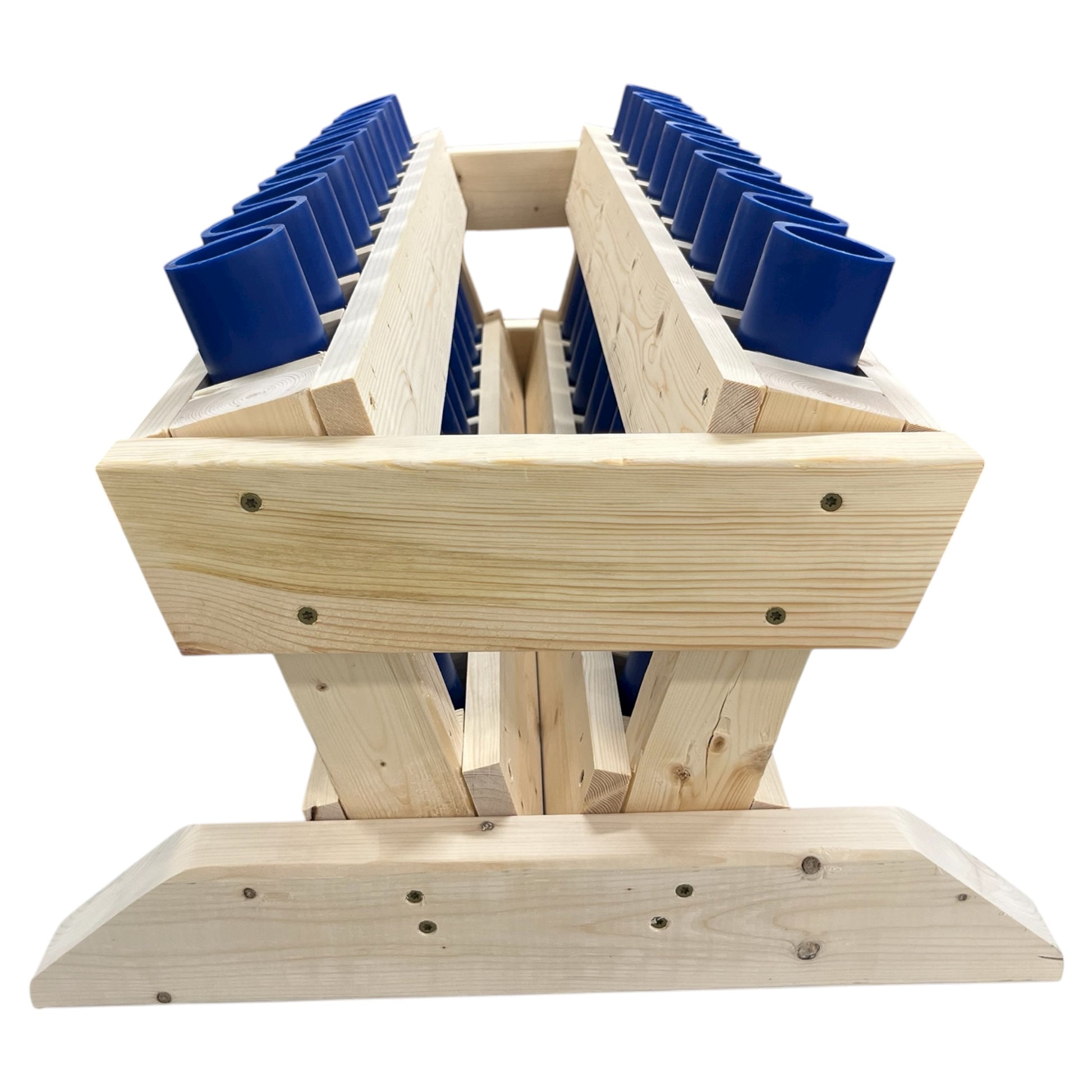

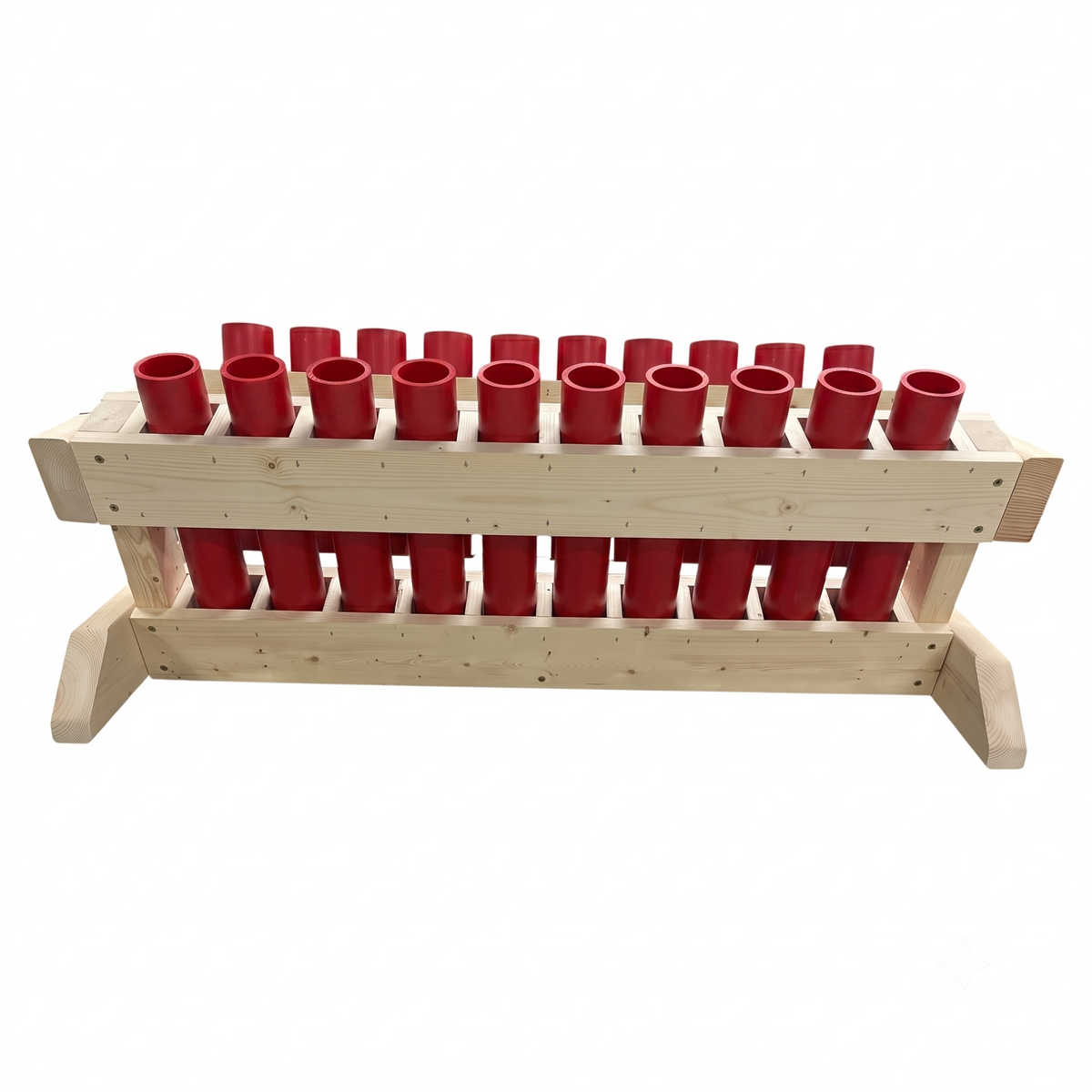

The GUARDIAN 20 FAN is a professional 20-shot rack designed for pyrotechnicians who want to anchor their mid-show segments with expansive horizontal coverage and rock-solid stability. Built with two rows of ten tubes angled in a precision fan pattern, this rack delivers clean, wide-angle firing effects in a compact and balanced footprint.

Like all our premium units, the fan configuration is built with Engineered Safety Spacing—providing critical air gaps between every tube to ensure thermal isolation and structural security, even during rapid-fire angled sequences.

Expanded coverage, dependable, and built to last—this is where serious setups begin.

🛡️ THE GOLD STANDARD: WHY HDPE DR11?

In the world of pro pyrotechnics, the material of your mortar tube is the difference between a successful show and a dangerous failure.

• Shatter-Proof Safety: Unlike PVC, which can shrapnel into sharp plastic shards during a shell failure, our High-Density Polyethylene (HDPE) is designed to swell or tear under extreme pressure, significantly reducing the risk of flying debris.
• DR11 Heavy Wall: We use the DR11 specification, providing a thick, durable sidewall that handles the high-pressure lift charges of modern 1.91" canister shells with ease. HDPE tubes are weather-resistant, built for hundreds of reloads without becoming brittle.

🔵 COMMERCIAL-GRADE CONSTRUCTION

Each GUARDIAN 20 FAN rack includes 20 premium HDPE DR11 mortar tubes, built to professional specifications and trusted by experienced shooters.

• Inner Diameter: 1.91″ (Fits most consumer canister shells)
• Length: 12″ (Professional mortar standard)
• Bottoms: Factory-plugged and Quad-Stapled (4-point reinforcement) for maximum lift retention.
• Stability: Reinforced wide-stance lumber construction designed to remain rock-solid and tip-resistant during angled launches.

📊 TECHNICAL SPECIFICATIONS

💥 WHY THE GUARDIAN 20 FAN BELONGS IN YOUR SETUP

✔️ Symmetrical Fan Pattern: Precision-angled 2X10 layout creates professional wide-angle visual impact.

✔️ Engineered Spacing: Strategic air gaps provide superior safety and heat management even in angled formations.

✔️ Professional Build: Heavy-duty lumber and HDPE—this rack isn't a compromise, it's a foundation piece for large-scale effects.

✔️ Modular Versatility: Pairs perfectly with the Guardian 20 Straight for high-contrast, professional-grade displays.

🎇 PERFECT FOR

🎆 Wide-angle show openers and pacing segments

🎆 Symmetrical side-by-side fan sequences

🎆 Scripted e-firing cues and synchronized shows

🎆 Fireworks clubs and pyrotechnicians building scalable systems

Note: Designed for experienced pyrotechnicians. Always follow local laws and maintain safe distances.

🔎 CHOOSE THE RIGHT RACK FOR YOUR SHOW

UNION 6 — Compact foundation rack.

BROADSIDE 16 FAN — Precision 16-shot fan effects.

RESOLUTE 14 FAN — Wide-angle resolve and coverage.

GUARDIAN 20 STRAIGHT — Compact stability and control.

GUARDIAN 20 FAN — Wide-angle stability and coverage (this rack).

THUNDER 24 — [BEST SELLER] Full-box power with a balanced footprint.

🇺🇸 BUILT TO HOLD FORMATION

The GUARDIAN 20 FAN represents disciplined construction, controlled firing, and professional reliability in a compact format.

No wasted space. No overlap. Just purpose-built performance.

Form up. Fire together. 💥

SHIPPING & PROUDLY BUILT TO ORDER

At American Mortar Company, we don't believe in "cookie-cutter" mass production. Each rack is handcrafted in our shop to ensure every HDPE tube is seated perfectly and every frame is reinforced for maximum recoil absorption.

• Lead Time: Please allow 3–5 business days for assembly and quality inspection before your order ships.
• Transit: We ship via UPS Ground to ensure your heavy hardware arrives safely.
• Tracking: You will receive an automated tracking number the moment your rack hits the truck.

Note: During peak pyro season (June & December), lead times may extend. Order early to ensure your line is ready for the big show.

⚠️ SAFETY & LIABILITY: American Mortar Company LLC racks are tools for professional and hobbyist pyrotechnicians. Use at your own risk. Always follow safety distances and local laws. By purchasing this product, you agree to hold American Mortar Company LLC harmless from any liability or damage resulting from its use.
